Multimedia Series of distribution metal enclosures

Application area

Multimedia box MM 18 distribution panels are applied in various industries, in energy distribution sector

for residential, commercial, office centers, smart installation, audio installation, internet distribution .

They are used for switching, protection and power distribution circuit breakers installation, smart controll

devices, internet modems and switches, audio devices and other devices.

Series MM-18

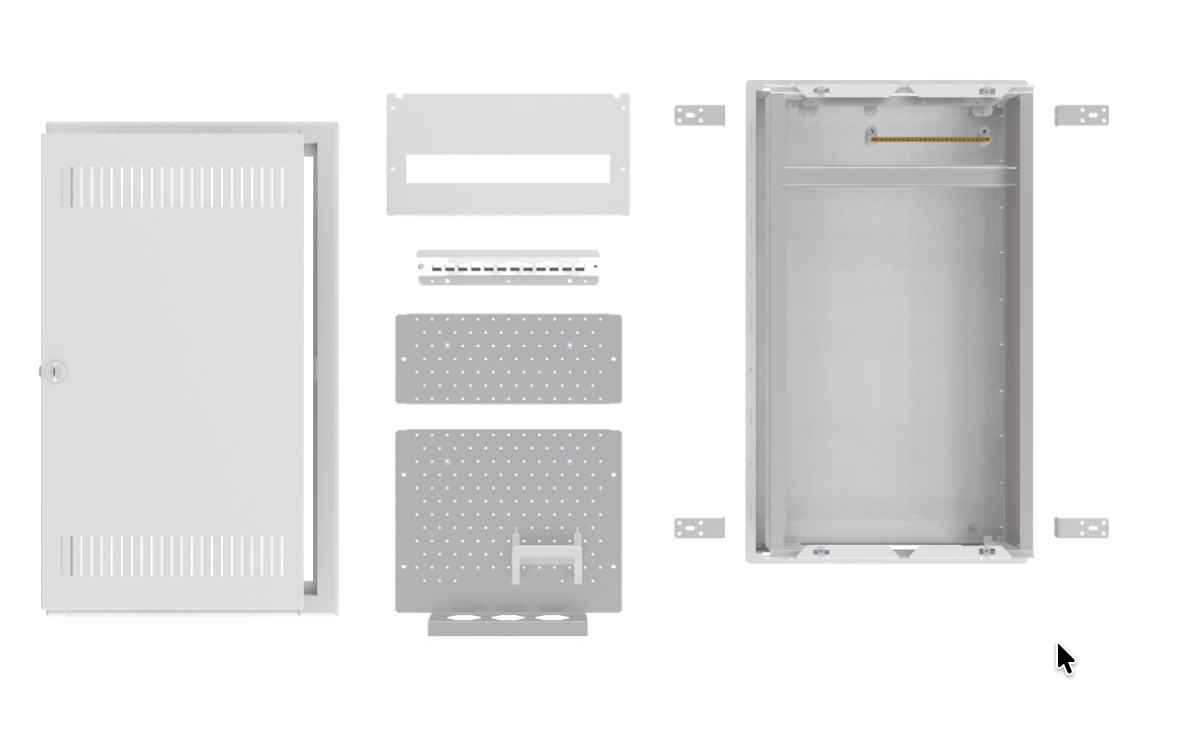

Design Description

MM multimedia boxes entirely from
sturdy metal and comprise the following components:
Bottom: Ensures the boxes remain stable and secure
on the wall, preventing any twisting or turning.
Mounting frame that holds DIN rails and
mounting plates. There is 20mm of space below DIN rails,
for cable placement
There are two mounting plates. One 150mm height is
replaceble and second one with 304mm height is fixed
with the holder for 3 sockets, that can be used for
powering the devices placed on mounting plate. Sockets
are not part of the box, need to be purchased separately.
Mounting plate has one modem holder and RJ45 patch
panel for 12xRJ45 sockets
All our boxes are 1mm thick metal and each part is
powder-coated for corrosion protection.
The doors are versatile and can be used on either the
left or right side, they have additional perforation for
heat dissipation and signal distribution.

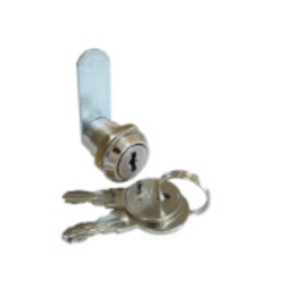

The door key is available as accessory.

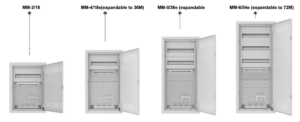

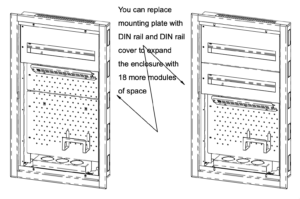

How to expand our multimedia boxes

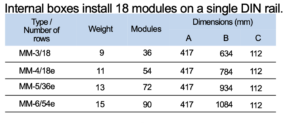

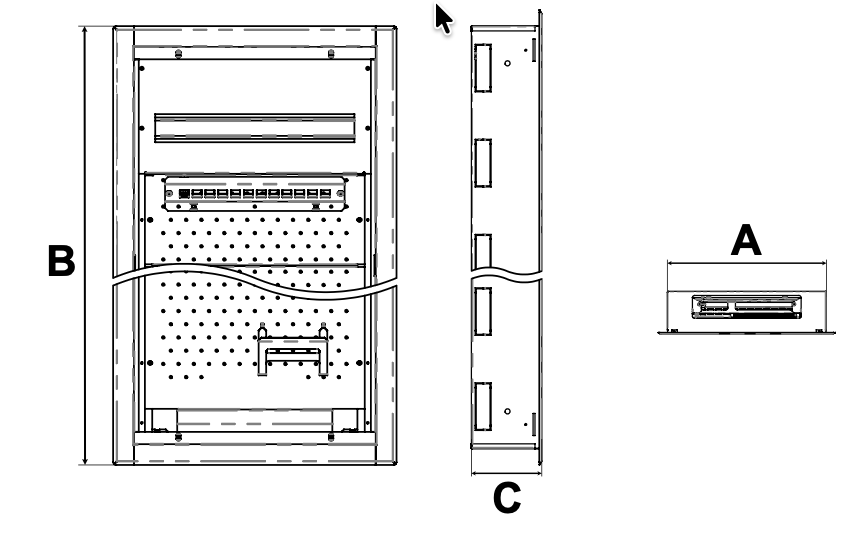

Dimensions
